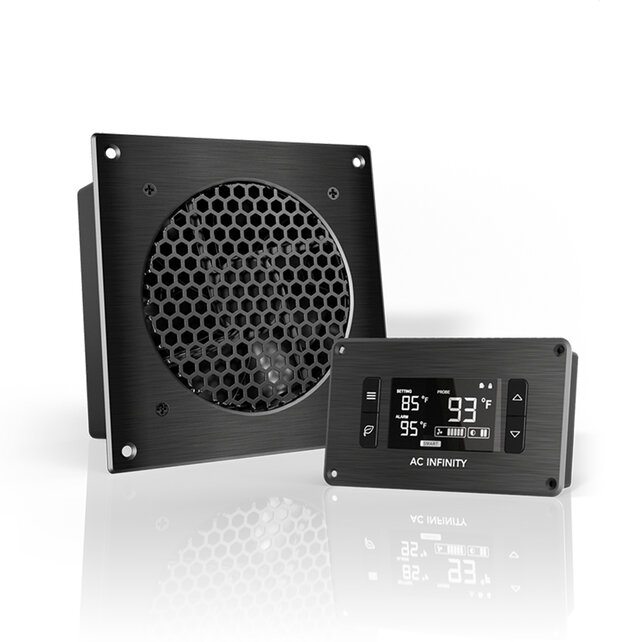

AIRPLATE T3, Home Theater and AV Quiet Cabinet Cooling Fan System, 6 Inch

• An ultra-quiet UL-certified fan system designed for cooling cabinets that requires minimal noise.
• Automated programming that self-adjusts cooling power in response to changing temperatures.
• Features a LCD display with an alarm system, display lock, six fan speeds, two buffer options, and memory.
• Fan and controller contain CNC machined aluminum frames with a modern brushed black finish.
• Dimensions: 6.3 x 6.3 x 1.3 in | Airflow: 52 CFM | Noise: 18 dBA | Bearings: Dual Ball

Product Description

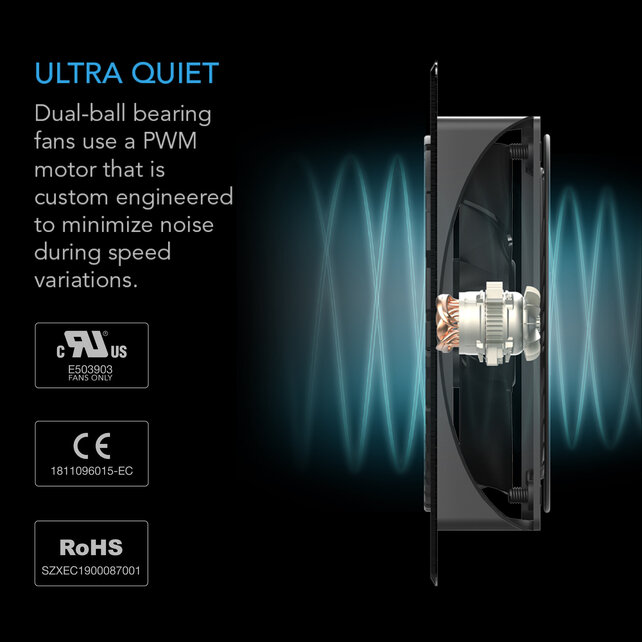

The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. Included fans use a custom motor engineered to minimize noise during speed variations and are certified by CE and RoHS. Contains AC Infinity axial fans ACX-FD1225(B)05W5 which meet UL-507 standards for safety under Underwriters Laboratories certificate E503903. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through a standard wall outlet.

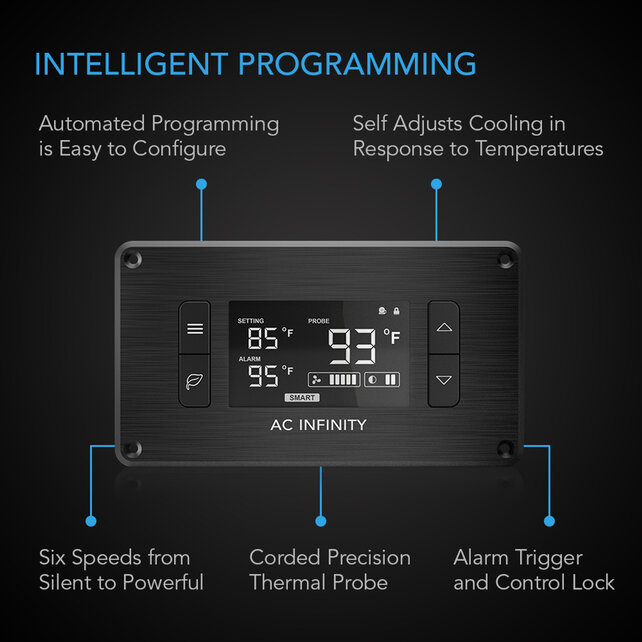

Thermal Controller

The controller features an on-board processor with active temperature monitoring as well as intelligent programming that will automatically adjust fan speeds to respond to varying temperatures. Additional features includes an alarm system, display lock or off while programs are running, six fan speeds, three back-light settings, two buffer options, and power failure memory. Features a detachable 6-foot precision thermal probe that is water resistant.

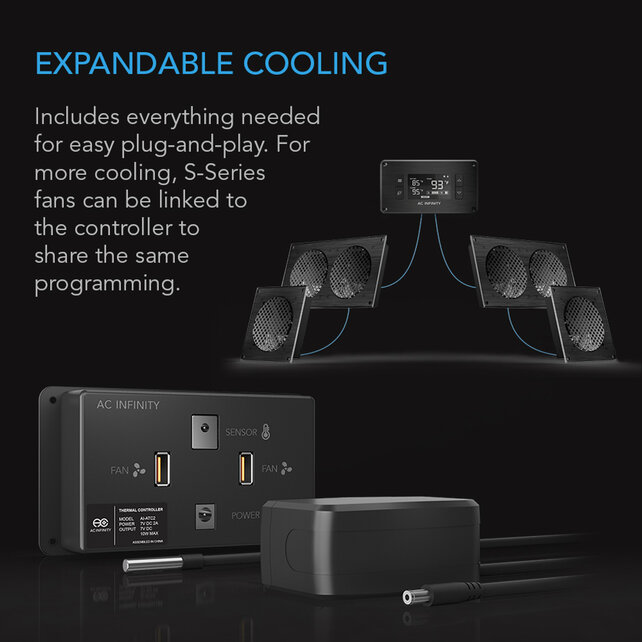

Connecting Additional Units

For cabinets that requires more airflow, additional AIRPLATE S series cabinet fans can be connected to the included thermal controller. Up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S3/T3 contains one fan, AIRPLATE S7/T7 contains two fans, and AIRPLATE S9/T9 contains three fans.

Applications

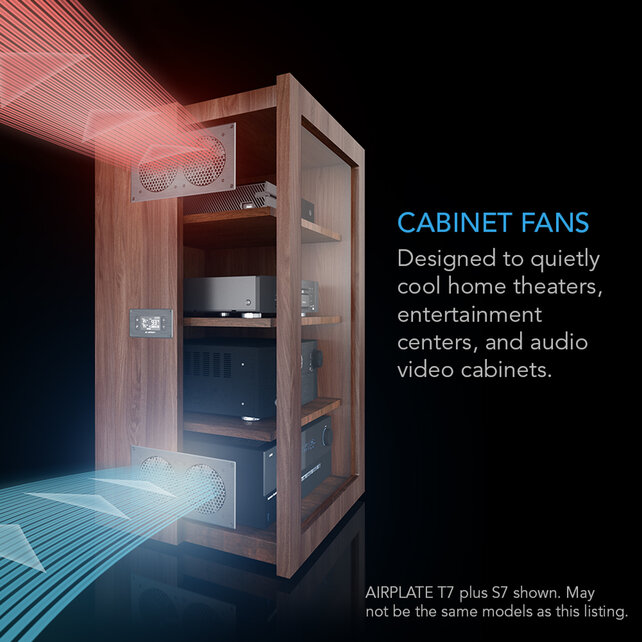

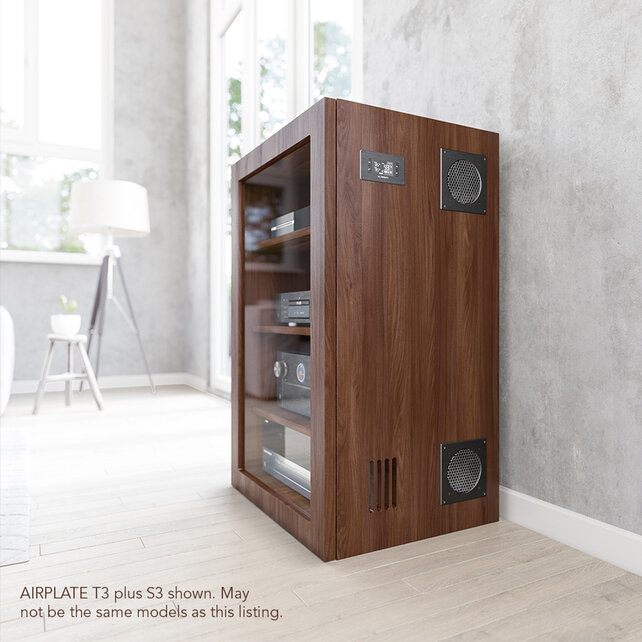

This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	AIRPLATE T3
Product Model	AI-APT3
UPC Code	854759004372

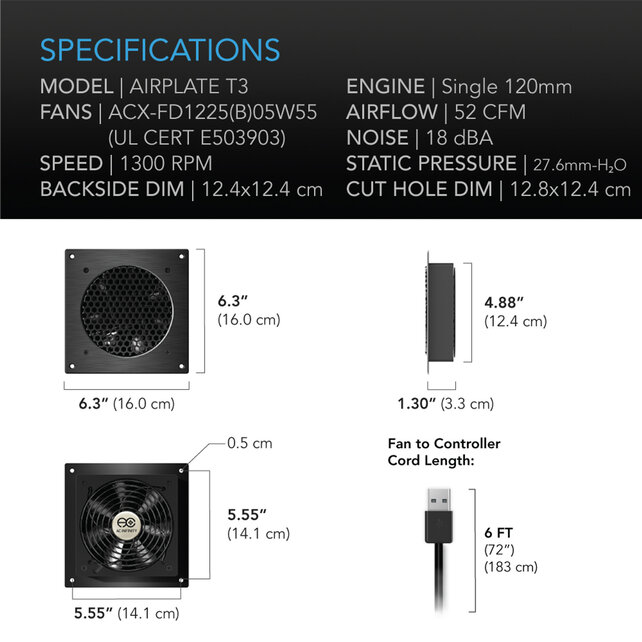

Product and Mounting Dimensions - Fan Unit
Total Dimensions	6.30 x 6.30 x 1.30 in (16.0 x 16.0 x 3.3 cm)
Backside Enclosure Dimensions	4.88 X 4.88 in (12.4 x 12.4 cm)
Required Mounting Hole	5.04 x 5.04 in (12.8 x 12.8 cm)
Hole to Hole Distance	5.55 x 5.55 in (14.1 x 14.1 cm)
Screw Hole Size	Ø 0.197 in (Ø 0.5 cm)
Cord Length	72 in (6 feet)
Mounting Template	PDF

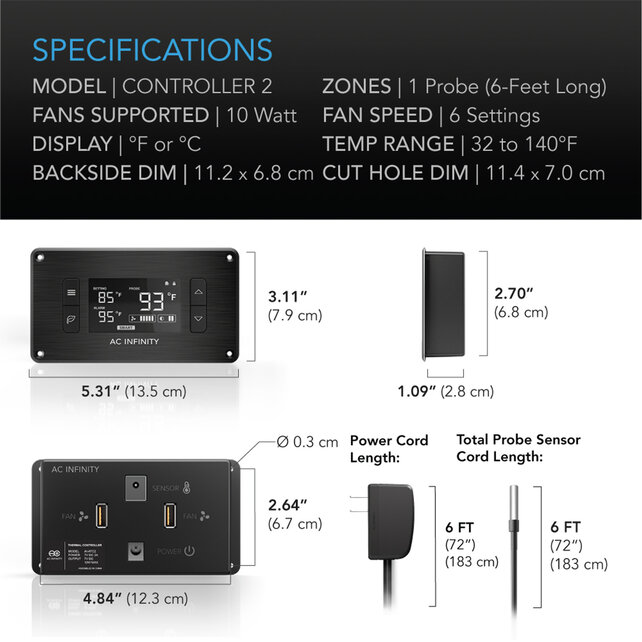

Product and Mounting Dimensions - Controller
Total Dimensions	5.20 x 3.11 x 1.10 in. (13.2 x 7.9 x 2.8 cm)
Backside Enclosure Dimensions	4.41 x 2.68 in. (11.2 x 6.8 cm)
Required Mounting Hole	4.48 x 2.76 in. (11.4 x 7.0 cm)
Hole to Hole Distance	4.71 x 2.64 in. (12.0 x 6.7 cm)
Screw Hole Size	Ø 0.119 in (Ø 0.3 cm)
Display Size	2.25 x 1.25 in. (4.7 x 3.2 cm)
Cord Length	72 in. (6 feet)
Thermal Probe Length	72 in. (6 feet)
Mounting Template	PDF
Product Performance and Technical Specs
Total Airflow	52 CFM
Total Noise	18 dBA
Static Pressure	1 mm-H2O
Operating Voltage	3 to 7V DC
Power	2.2 W
Current	0.44 A
Wall Adapter Input	100 to 240V AC
Operating Humidity	35 to 85% RH
Operating Temperature	0 to 158°F
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
Fan Quality Approvals	UL, CE, RoHS
